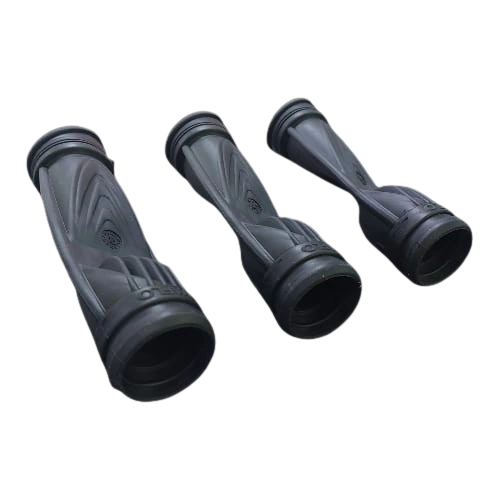

POOL CLEANER POOL-TECH PACER DIAPHRAGM (3 PACK)

Maximize the efficiency of your pool cleaning with the Pool-Tech Pacer Diaphragm in , specifically crafted for the Zodiac Pacer pool cleaner. Available in a cost-effective 3-pack, this essential replacement part transforms your cleaner’s suction power into effective movement, ensuring thorough cleaning of your pool.

Key Features:

• Functionality: The diaphragm acts similarly to a heart valve by creating a crucial suction and release cycle, which propels the cleaner efficiently around the pool.
• Durability: Constructed from premium materials, the beige diaphragm offers both longevity and reliable performance.
• Compatibility: Specially designed for the Zodiac Pacer model, it guarantees a perfect fit and enhanced cleaning efficiency.
• Color: Its distinctive beige hue marks it as a unique component from Pool-Tech, making it easy to identify during maintenance or replacement.

Maintenance and Replacement Process:

Removal:

• Loosening Outer Extension Pipes: Begin by turning the hand nut counterclockwise to loosen and remove the pipe.
• Diaphragm Removal: Invert the cleaner, hold the diaphragm flange, and pull out the diaphragm along with the inner pipe.

Inspection and Cleaning:

• Detach the diaphragm to check for debris or damage. Rinse thoroughly and replace if necessary.

Reinstallation Steps:

• Check the Retaining Ring: Ensure the retaining ring is properly placed on the diaphragm.
• Attach Diaphragm to Pipe: Securely push the diaphragm onto the inner pipe.
• Align and Insert: Line up the diaphragm flange with the slot in the cleaner body and insert the assembly until it is flush with the inlet plate.
• Reattach Outer Pipe: Replace the outer extension pipe and tighten the hand nut, ensuring not to over-tighten.
